Database traversal

[Ian]

I had a dig into the sdk with ida pro again ..

Here's what I found

Code: Select all

void __thiscall PRO_Culling_Node::SetGroupLayerNumber(PRO_Culling_Node *this, __int32 a2)
{
  *((_DWORD *)this + 26) = a2;
}

Sets the layer number

Code: Select all

void __thiscall PRO_Culling_Node::FormatCullingHierarchy(PRO_Culling_Node *this, __int32 a2)
{
      // removed not applicable code
      PRO_Culling_Node::AugmentCullingHierarchy(this, 1, *((_DWORD *)this + 26) >= 1u, a2);
 }


This method is turning the layer number into a bool. If layerNumber >= 1

Code: Select all

void __thiscall PRO_Culling_Node::AugmentCullingHierarchy(PRO_Culling_Node *this, __int32 a2, bool stencil, __int32 a4)
{
      // other code
      PRO_Culling_Node::fragmentPolygons(v5, stencil, vertexSharing);
}


Just calls another method to fragment the polys if needed

Code: Select all

void __thiscall PRO_Culling_Node::fragmentPolygons(PRO_Culling_Node *this, bool stencil, bool vertexSharing)
{
        PRO_Culling_Node::formatPolygons(
          (void *)v42,
          a3,
          *((_DWORD *)v42 + 14),
          *((_DWORD *)v42 + 15),
          *((_DWORD *)v42 + 16),
          stencil);
}


Finally ..

Code: Select all

unsigned int __thiscall PRO_Culling_Node::formatPolygons(void *this, int a2, int a3, int a4, int a5, bool stencil)
{
              if ( stencil )
                PRO_Polygon::PolygonIsLayered(v42);
}


PolygonIsLayered simply sets ..

Code: Select all

(this + 6) |= 8u;

Which just sets the layered flag.

So the too lazy didn't read, group layer just seems to set the stencil poly flag. Doesn't appear to do anything else. There must be something else in the culling nodes, or maybe even the viewport itself that turns on stenciling :/

[Bart]

Is it possible that the state change is triggered by parsing a model that has this bit set during? Seems unlikely but just a thought.

[Ian]

It's only sega rally 2 which sets the stencil flag. I did notice this in sega rally 2, maybe Harry can make sense of this madness

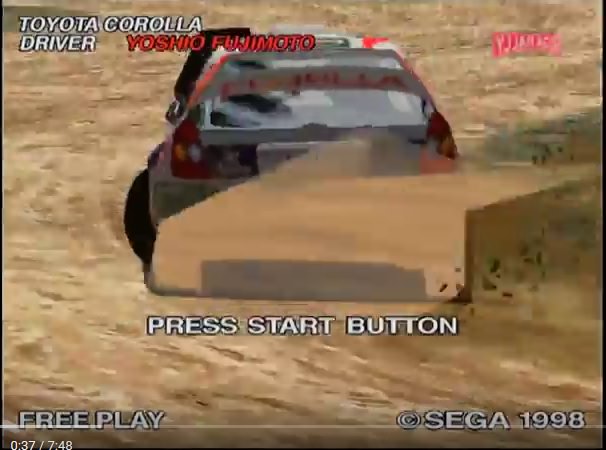

Notice the dust completely covers the black wheels of the car, yet the shadow shows through somehow. I am not even sure how this is possible, unless texture transparency is rendered to one buffer, poly transparency is rendered to another, and the two blended together.

https://www.youtube.com/watch?v=kJ2sBdxzA7s&t=37s

You can see similar things with the shadows in other games
This is harley



Not even sure how thats possible but I am sure its the key to what we are missing.

[HarryTuttle]

maybe Harry can make sense of this madness

Unfortunately not. I hoped that Node ID could be the solution, I also tried time ago to make sense of viewport and/or polygon number, but the former is used heavily in SWT in a way that didn't tell me anything useful, while the latter I still have to check.

Notice the dust completely covers the black wheels of the car, yet the shadow shows through somehow.

I had somewhat replicated that effect by using the RenderScene function in multipass fashion. That old hack worked a bit for Sega Rally 2 but not in other games, so I soon scrapped that solution. Anyway this is what I did:

1) In <New3D.cpp> I modified the RenderScene function to accept these arguments:

Code: Select all

void CNew3D::RenderScene(int priority, bool alpha, bool texEnabled, bool texAlpha, bool polyAlpha)


2) Then, for every layer priority, after the opaque polygon pass I called:

Code: Select all

RenderScene (pri, true, false, false, true); // i.e. Sega Rally 2 shadows
RenderScene (pri, true, true, true, false); // i.e. Sega Rally 2 headlights
RenderScene (pri, true, true, true, true); // i.e. Sega Rally 2 dirt/snow
RenderScene (pri, true, true, false, true); // i.e. Sega Rally 2 car glasses


Obviously inside the function there was a check for each particular combination, and if it wasn't met it exited.

[Ian]

I was thinking of pushing something similar to that
But like
RenderScene(opaque)
RenderScene(textureAlpha)
RenderScene(polyAlpha)

it's enough to fix the lights in lemans24

[model123]

Hello

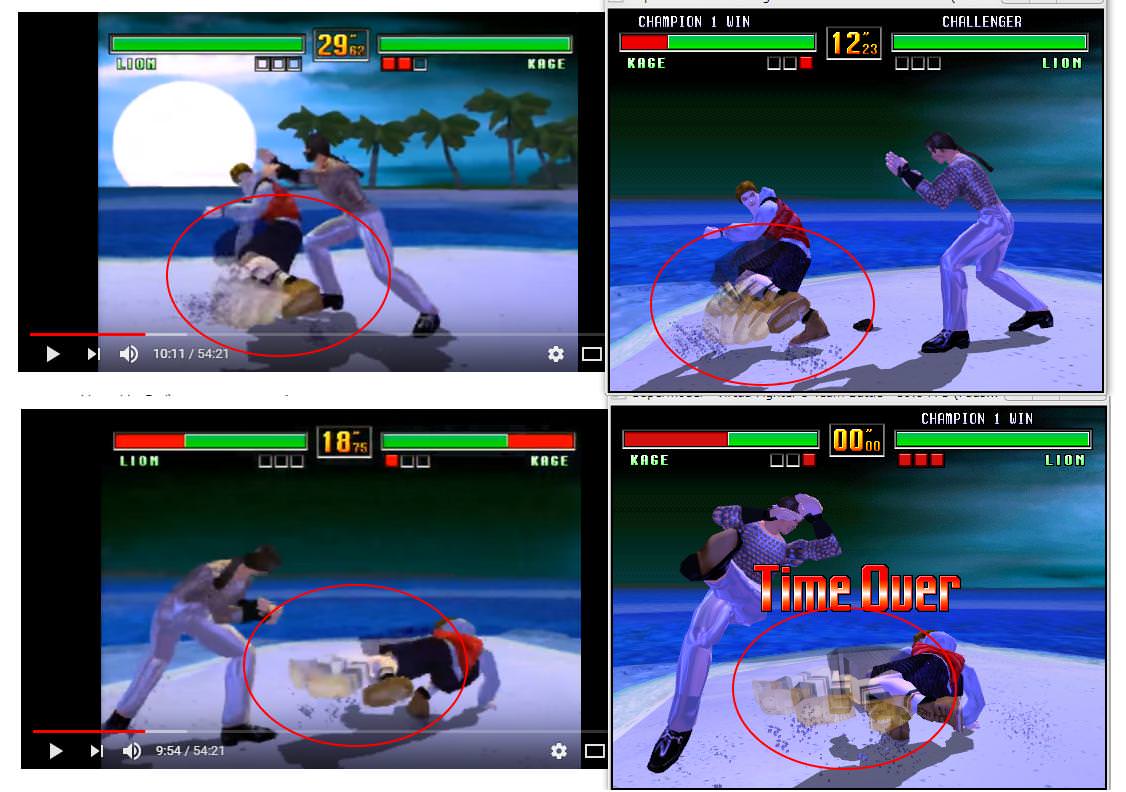

Translucent stage frame and shadow problems with Virtua Fighter
Translucent map and shadow problems with spike out
I think the same as
The transparency of the afterimage of the blow is overlapping



https://youtu.be/xLdbunrEwHQ?t=10m11s
https://youtu.be/xLdbunrEwHQ?t=9m54s

saves
http://www.mediafire.com/file/pxg6sq9dde7s2m2/vf3tb2.zip

From Google Translate

[Ian]

thanks for those screenshots
There is definitely some sort of depth pass happening for translucent polys ..
