ATTN Model 3 Board Owners: Anyone willing to run test code?

[Bart]

For those who own real Model 3 boards (esp. Step 2.x and 1.5): would you be willing to temporarily swap out the 4 program EPROMs to run test code that could help illuminate what is going on with frame timing?

I recently had an idea. It'll be a long while before I can get my own test code running from scratch. A much quicker option would be to patch existing games to print out timing values during e.g. the copyright warning screen or in the service menu.

[Hydreigon233]

I theoretically could since I am dealing with a Lost World machine with a screwed up gun sense board (needs major coil adjustment). Idk if the program eeproms are different across Step 1.X and 2.X and never seen these in action before (not much from search results either).

[Ian]

the real3d pro-1000 standalone device
it polls the rendering_done bit, well at least the demo programs do. Once it's done it'll then render the next frame. Not sure that helps us that much with the model 3.

The data layout is the same tho. It would be interesting to see what actual model 3 programs are doing with the rest of these bits

Code: Select all

typedef struct
{
   unsigned long  tot_clks     :23;
   unsigned long  rend_done    : 1;
   unsigned long  update_done  : 1;
   unsigned long  ping_pong    : 1;
   unsigned long  dp_done      : 1;
   unsigned long  gp_done      : 1;
   unsigned long  spare1       : 4;

   unsigned long  vpt0_clks    :23;
   unsigned long  spare2       : 9;

   unsigned long  vpt1_clks    :23;
   unsigned long spare3        : 9;

   unsigned long  vpt2_clks    :23;
   unsigned long  spare4       : 9;

   unsigned long  vpt3_clks    :23;
   unsigned long  spare5       : 9;

   range_return   ranges[4];
   unsigned long  ls_cycle;
   Hw_Config      hw_config;
   unsigned long  words_buf_to_host;
   unsigned long  null0;
   unsigned long  null1;
} Stat_Pckt ;

[Bart]

The only bit the games care about is pingpong. The other bits are extracted and stored in memory (by some sort of common firmware library code that exists in each game) but never accessed.

If you have a moment you should take a look at my posts about Fighting Vipers 2 in the dev forum's timing thread. The first thing all the games do is count how many cycles it takes for pingpong to flip. They load up some very basic scene graph that includes a culling node referencing a VROM address (I haven't checked whether it is a model or some other kind of data -- maybe it is a special reference that is interpreted as a command?) and then try to assess frame timing.

Here is the subroutine translated to C code (read_tbl() reads the PowerPC's high precision clock register):

Code: Select all

//
// This routine is executed once during startup. Calibrates the DEC value.
// If the DEC value is too low (i.e., the status bit flipped too quickly),
// the game will hang a little further on in suba0e8() in a decrementer
// loop that loops until the decrementer turns positive (which happens in
// the VBL handler when DEC is reloaded with this calibrated value).
//
void sub40c0()
{
  // Measure the duration of one whole frame
  wait_for_vbl();
  uint32_t start_of_frame = read_tbl();
  wait_for_vbl();
  uint32_t end_of_frame = read_tbl();
  uint32_t frame_duration = end_of_frame - start_of_frame;

  // Issue a flush command
  real3d_flush(2);  // 0x88000000 = 0xdeaddead

  // Wait for status bit to flip
  read_real3d_status();
  uint8_t old_status_bit = _real3d_status_bits[2];
  do
  {
    read_real3d_status();
  } while (_real3d_status_bits[2] == old_status_bit);

  // Measure duration until next VBL
  uint32_t start = read_tbl();
  wait_for_vbl();
  read_real3d_status();
  uint32_t end = read_tbl();
  uint32_t duration = end - start;
  if (duration < 0x20)
    duration = 0x20;

  // Compute the time that the flush and subsequent status bit flip took. This
  // is the only place in the code that this value is loaded, and it is used to
  // reload the decrementer.
  //
  // What puzzles me is why they don't just measure the time directly by
  // taking (start - end_of_frame) ?
  _dec_reload_on_vbl = frame_duration - duration;
}


And here are the contents of the Real3D memory when this is executed:

Code: Select all

  The data written initially to Real3D RAM appears to be a minimalistic scene
  graph consisting of one single viewport and one single culling node that
  references an address in VROM which may or may not be a model. It has not yet
  been analyzed in detail.

    Viewport:
    000000: 00000000   0.000000
    000001: 01000000   0.000000
    000002: 04800500   0.000000  <-- display list at 0x500
    000003: 43fb4fc7   502.623260
    000004: 00000000   0.000000
    000005: bf64f92e   -0.894427
    000006: 3ee4f92e   0.447214
    000007: 3f19999a   0.600000
    000008: 3fb5fdbb   1.421806
    000009: 3feed9e1   1.866024
    00000a: 3f000000   0.500000
    00000b: 3f000000   0.500000
    00000c: 3ea9db1b   0.331750
    00000d: 3f718087   0.943367
    00000e: 3e8483f4   0.258819
    00000f: 3f7746e9   0.965926
    000010: 3ea9db1b   0.331750
    000011: bf718087   -0.943367
    000012: 3e8483f4   0.258819
    000013: bf7746e9   -0.965926
    000014: 060007bf   0.000000
    000015: 00000000   0.000000
    000016: 00802000   0.000000
    000017: 00800100   0.000000
    000018: 00000000   0.000000
    000019: 00000000   0.000000
    00001a: 00000000   0.000000
    00001b: 00000003   0.000000
    00001c: 00000000   0.000000
    00001d: 00200600   0.000000
    00001e: 002007c0   0.000000
    00001f: 00000000   0.000000
    000020: 00000000   0.000000
    000021: 4e6e6b28   1000000000.000000
    000022: 00000000   0.000000
    000023: 3727c5ac   0.000010
    000024: 00004c00   0.000000
    000025: 00ffffab   0.000000

    Display list:
    000500: 02040000  0.000000 <-- culling node at 0x40000
    000501: 00000000  0.000000
    ...

    Culling node:
    040000: 80000412   -0.000000
    040001: 00000000   0.000000
    040002: 00000000   0.000000
    040003: 20000000   0.000000
    040004: 00000000   0.000000
    040005: 00000000   0.000000
    040006: 00000000   0.000000
    040007: 017fff00   0.000000 <-- VROM model at 0x7fff00 (0x1fffc00 in bytes)
    040008: 01000000   0.000000
    040009: eab8eab8   -111775389383496413841719296.000000

    VROM:
    01fffc00h: 9E 28 FD A3 9E 37 08 3A 18 49 94 02 04 BF 39 08
    01fffc10h: 2B 8E 02 99 84 77 81 81 0A 49 FF BF F7 3A 39 6C
    01fffc20h: 07 3C 13 6C B7 77 05 08 00 86 F8 78 C7 A7 11 74
    01fffc30h: 00 64 0D 63 08 6E 0F D3 B6 20 E7 06 6F 5A 11 AE
    01fffc40h: 83 52 92 CC 64 19 FF 08 35 F9 2A 4C 74 69 01 B1
    01fffc50h: F6 21 A6 70 F6 B5 EC 7C 80 61 F8 85 6A 05 8E CF
    01fffc60h: 67 20 DE 7D CF DF 59 64 64 99 E8 3A 23 4E E3 8C
    01fffc70h: 4D 81 27 00 53 4F AB 50 61 75 BD A1 7E 26 80 C7
    01fffc80h: 51 A8 2A E0 67 38 0A 28 54 88 90 08 8C BF 1D 28
    01fffc90h: DC 28 40 C8 0B D9 89 05 A3 E9 B7 37 56 C2 D1 C4
    01fffca0h: 71 C8 DC F3 FA 94 25 82 10 1A D8 04 40 5F 33 68
    01fffcb0h: 8D 49 70 68 00 CD A3 6A B1 FA 9B 0C F9 29 44 9F
    01fffcc0h: 43 50 AA EB E2 77 4C 41 4A F9 10 D2 2B F6 46 08
    01fffcd0h: 84 38 80 A8 24 22 7F 32 15 13 7F 08 28 48 12 1D
    01fffce0h: 84 37 E5 6F F3 BC 32 D8 0B 9C 26 14 00 BE 57 4C
    01fffcf0h: CE 60 05 30 8C 09 A6 0A 04 84 AD 08 FB 07 58 E8


I know the location of fvipers2's main game loop and have even identified the functions where all Real3D transfers are performed before moving on to updating game logic. I don't have a complete handle on what it's trying to do but I've found a couple of timing routines. Basically, the games are looking at VBlank interrupts as well as counting cycles. The timing value computed at the beginning is loaded into the PowerPC's decrementer register, which decrements at the same rate as the high precision clock, TBL. When it hits zero, it triggers an interrupt and the DEC register is reloaded. It uses this information to determine when to advance to the next game frame.

To me, it appears the games are computing how long the Real3D spends rendering a frame. This only makes sense if the Real3D has a hard timeout for frame rendering and uses that to maintain a precise 57.5Hz rate regardless of scene complexity. Alternatively, they may simply be measuring how long of a timeout is required to flip the buffers (which presumably takes a while because it also cancels the current frame and initiates a new one).

[Jiterdomer]

Here's another example,
https://youtu.be/B5Rv6CRONEI (Only watch the select screen part of it since it's a Step 2.X game).

[Bart]

I theoretically could since I am dealing with a Lost World machine with a screwed up gun sense board (needs major coil adjustment). Idk if the program eeproms are different across Step 1.X and 2.X and never seen these in action before (not much from search results either).

Lost World is a Step 1.5 game. I would supply you with patched Lost World ROMs that you would need to burn onto EPROM (can you do this or would you need me to burn them?) and insert. Might take me a bit of time to get this working, though.

[nuexzz..]

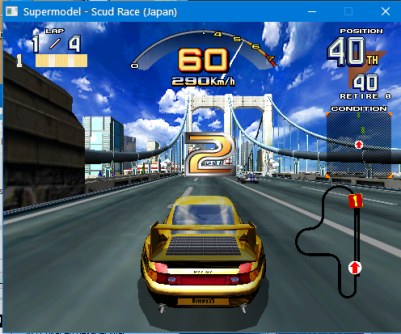

a little out of topic, but I take the opportunity not to open a new thread, here I was playing a bit with memory and I have been able to solve some 2D elements in scud race verion japan, I leave you a saved state so you can dig into your debugger.

https://www.sendspace.com/file/q9bi5m

[Hydreigon233]

I theoretically could since I am dealing with a Lost World machine with a screwed up gun sense board (needs major coil adjustment). Idk if the program eeproms are different across Step 1.X and 2.X and never seen these in action before (not much from search results either).

Lost World is a Step 1.5 game. I would supply you with patched Lost World ROMs that you would need to burn onto EPROM (can you do this or would you need me to burn them?) and insert. Might take me a bit of time to get this working, though.

You should burn them at first but I would like an ROM burner for myself one day. Do you use something like a USB GQ-4X?

[Bart]

I use a cheap programmer that looks just like that (may be the same one). It’s great.

[Ian]

I had a poke around with vf3 with the status bits. Once the game is loaded the status bit doesn't seem to matter at all. Ie can just return 0 and the game runs at normal speed. So everything must be synced at startup with that particular routine
